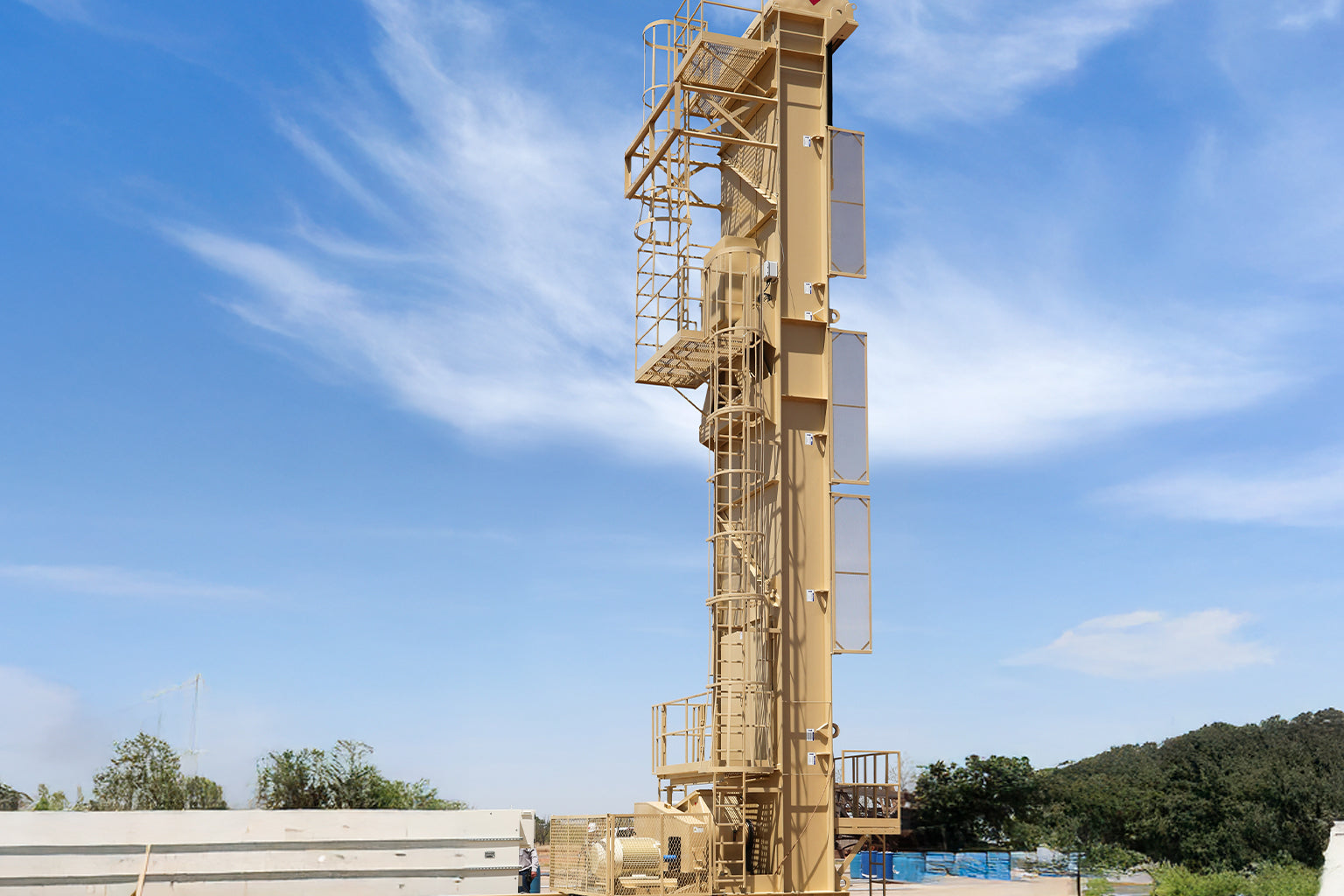

The XL Long Stroke pump unit is a highly efficient artificial lift solution designed for deep, high-volume wells and challenging operating conditions. Its long, slow stroke improves pump filling, optimizes system efficiency, and significantly reduces wear on surface and downhole components. It is ideal for transitioning from ESP systems to mechanical lift early in the production cycle, also offering significant energy savings.

Technical characteristics:

  • Long stroke from 291 inches.
  • Efficient counterweight system with cycle reduction of up to 60% .
  • Reduction in energy consumption between 15% and 40% .
  • Integrated hydraulic recoil system for better access to the header.
  • Smart sensors: vibration, pressure, band alignment, rod position.

Typical applications:

  • High volume and high load wells.
  • Horizontal or deviated wells prone to pipe and rod failures.
  • Production of heavy crude oils or those with a high gas-liquid ratio (GLR).
  • Efficient alternative to the use of electrosubmersible pumps (ESP) .
  • Operations in complex environments where high reliability and low maintenance are required.
